FLUOstar Omega
滤光片型多功能酶标仪
FLUOstar® Omega 是一款多功能微孔板读板仪，支持多达六种检测模式，结合超高速 UV/Vis 光谱扫描与高灵敏度滤光片技术，为生命科学研究提供全面的检测解决方案。

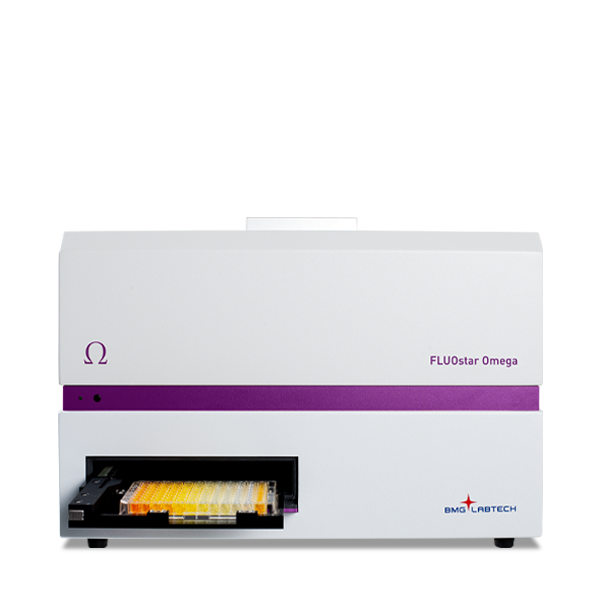

FLUOstar Omega
FLUOstar Omega是一款多功能多模式酶标仪，集成荧光强度（包括 FRET）、发光检测（包括 BRET）、紫外/可见吸收光谱、时间分辨荧光等多种检测方式，适用于广泛的生物学与药物研发应用。
FLUOstar Omega 仅用于科研用途。
特点
- 高速吸光度测定
- 检测高达384孔板
- 顶部/底部检测自动切换
- 最高45℃或者65℃的控温功能
- 用户自定义振荡模式
- 每孔的扫描量高达900个数据点
- 高精度注射系统，实现试剂注入与检测同步
- 微量体积测定
服务于全球科研与工业机构：
客户成功案例
可选配件
我们的技术
-
FLUOstar Omega 的维护要求是什么？
BMG LABTECH 的微孔板读板机设计坚固、性能可靠，无需对光学组件进行校准。建议的维护工作包括载板托架偏移调整、光学组件清洁、软件/固件更新以及例行性能检查。 -
维护费用和维护计划有哪些？
BMG LABTECH 提供灵活的维护方案，以确保长期性能。费用取决于所选择的方案。请通过服务合同表格与我们联系。 -
BMG LABTECH 是否为 FLUOstar Omega 提供技术支持或培训？
是的，我们提供全面的技术支持和培训服务，帮助用户充分发挥仪器的功能。请联系我们了解更多信息。 -
在哪里可以获得 FLUOstar Omega 的更多信息或购买选项？
您可以在FLUOstar Omega 产品页面查看详细的产品信息、技术规格和可用配置。若需购买选项、报价或个性化建议，如需购买选项、报价或个性化推荐，请向我们的销售团队提交请求。 -
如何申请额外的滤光片？
您可通过我们的滤光片申请表格来获取额外滤光片的报价。 我们将根据您的实验配置提供相应方案。 -
在哪里可以找到 FLUOstar Omega 的用户手册？
每台仪器都附带使用手册。如您遗失了手册，请使用我们的手册申请表获取副本。 -
在哪里可以找到 FLUOstar Omega 的软件？
软件随每台读板机一同提供，可安装在任意数量的计算机上。软件位于随手册附带的 USB 盘中（旧型号为 CD）。如果您遗失了 USB 盘或 CD，我们可以提供下载链接。请联系软件支持团队。 -
FLUOstar Omega 的 BMG LABTECH 软件是否兼容 Windows 11？
是的。自 V3.00 R3 版本起，FLUOstar Omega 软件已完全兼容 Windows 11。如需确保在 Windows 11 上顺利运行，或在安装和兼容性方面需要帮助，请联系软件支持团队。 -
FLUOstar Omega 的购买成本是多少？
费用取决于所选配置。请联系我们获取个性化报价。 -
是否有如何优化微孔板读板机测量的教程？
是的，我们提供详细的 How‑To 说明文档，解释常见检测参数、其对结果的影响以及如何优化测量。可在我们的 How‑To 页面找到。 -
典型的交付周期是多久？
交货时间取决于型号库存情况、配置和所在地。若需准确交货时间，请通过联系页面发送通用请求。
Loading reviews...
评价您的 BMG LABTECH 微孔板读数仪
帮助其他科学家为其实验需求选择合适的仪器。
Colorimetric and turbidimetric analysis of endotoxins using the absorbance detection mode
Torn between a colorimetric or turbidimetric LAL assay? Whichever path you take, BMG LABTECH’s absorbance readers deliver dependable results every time.
Multiplexing the production of two G protein-coupled receptor second messengers using spectrally resolved fluorescent dyes
Streamline your workflow and double your insights: multiplexing cellular signal responses of multiple second messengers in a single measurement saves valuable time and conserves reagents.
Detection of bacterial endotoxins using the PYROSTAR™ ES-F/Plate LAL assay
Perform the PYROSTAR ES-F/Plate LAL test your way— BMG LABTECH readers support both turbidimetric and nephelometric evaluation for maximum flexibility.
Fast and highly sensitive pyrogen detection with the LumiMAT™ assay performed on BMG LABTECH microplate readers
Are you a fan of the monocyte activation test for endotoxin tests, but would like to speed up the testing process? Read here how the LumiMAT test and BMG LABTECH readers can support you.
Determination of Minimum Inhibitory Concentration (MIC) of antibiotics using OD600
Do you want to make your MIC measurements more efficient and automated? Find out here how BMG LABTECH microplate readers can support you in this task.
Screening for novel antibiotics in venom against Staphylococcus aureus
The threat of growing antibiotic resistance is constantly increasing. Find out here how venom fractions are emerging as a beacon of hope in the search for novel antibiotics.
Detection modes
Fluorescence intensity - incl. FRET
Luminescence (flash and glow) - incl. BRET
UV/Vis absorbance spectra
Measurement modes
Top and bottom reading
Endpoint and kinetic
Sequential multi excitation
Sequential multi emission
Simultaneous Dual Emission (FI and LUM)
Spectral scanning (absorbance)
Ratiometric measurements
Microplate formats
6 to 384-well plates, user-definable
LVis Plate with 16 low volume microspots (2 μL)
Microplate carrier
Robot compatible
Light sources
High energy xenon flash lamp
Detectors
Low noise photomultiplier tube
CCD spectrometer
Wavelength selection
Optical filters: ex and em wheels for 8 filters each
UV/vis absorbance spectrometer: full spectra or 8 distinct wavelengths in < 1 sec/well
Spectral range
Filters
240 - 740 nm or 240 - 900 nm for FI
240 - 740 nm for LUM
Spectrometer
220 - 1000 nm for ABS; wavelength precision: ≤ 0.5 nm
Sensitivity
FI
<0.2 fmol/well FITC.
TRF
< 30 amol/well europium.
LUM
< 20 amol/well ATP.
ABS with spectrometer
Selectable spectral resolution: 1, 2, 5, and 10 nm.
OD range: 0 to 4 OD; photometric resolution: 0.001 OD.
Accuracy: < 1% at 2 OD.
Precision: < 0.5% at 1 OD and < 0.8% at 2 OD.
Linearity: ≤ 0.8% at 2.0 OD.
ABS with filters
OD range: 0 to 4 OD
Reproducibility: ±0.010 OD for 0-2 OD range
Read times
Flying mode (1 flash)
9 s (96), 16 s (384)
Shaking
Linear, orbital, and double-orbital with user-definable time and speed
Purge gas vent
System to inject an atmosphere or to pull a vacuum into the reader
Incubation
+4 °C above ambient up to 45 °C or 65 °C
The upper heating plate of the incubation chamber operates at 0.5 °C more than the lower plate. This prevents condensation build-up on the lid or sealer
Software
Multi-user Reader Control and MARS Data Analysis Software included
FDA 21 CFR Part 11 compliant
Dimensions
Width: 44 cm, depth: 48 cm, height: 30 cm; weight: 28 kg
Optical filters
Excitation and emission filter wheels for 8 filters each
Optical path guides
Top: liquid-filled light guides
Bottom: fiber optics
Reagent injection
Up to 2 built-in reagent injectors
Injection at measurement position (6 to 384-well)
Individual injection volumes for each well (3 to 500 µL)
Variable injection speed up to 420 µL/s
Up to four injection events per well
Reagent back flushing
Power requirements
- 100-240 V, 50/60 Hz, max. peak 300 VA
Power consumption
- Instrument off: 0 W
- Normal operating conditions: 25 W
- Normal operating conditions, incubation set to 37°C: 60 W
Optional Accessories
LVis plate
Sample capacity: sixteen separate microdrop wells for 2 µL samples; one standard cuvette position for up to 1 mL samples
Quality control internal standards (optional): four NIST traceable optical density filters (approximate values of 0.1, 0.3, 0.6 and 1.0 OD); one holmium oxide filter for wavelength accuracy
Dimensions: conforms to SBS standards for microplates
THERMOstar
Microplate incubator and shaker
Atmospheric control unit
Actively regulates O2 and CO2 - 0.1-20%
Stacker
Magazines for up to 50 plates - continuous loading feature
Optical filters
Excitation and emission filters
Upgrades
Please contact your local representative for upgrades including options such as detection modes, reagent injectors, etc
*
LOD = 3 x SD (20 blanks) / slope (6 pt std curve)
Microplates: white for LUM; black for FI; clear for ABS
96 = 96-well microplates
384sv = 384-well small volume microplates
384g = 384-well glass bottom microplates
The FLUOstar Omega is for research use only.
