Detection of bacterial endotoxins using the PYROSTAR™ ES-F/Plate LAL assay
Perform the PYROSTAR ES-F/Plate LAL test your way— BMG LABTECH readers support both turbidimetric and nephelometric evaluation for maximum flexibility.

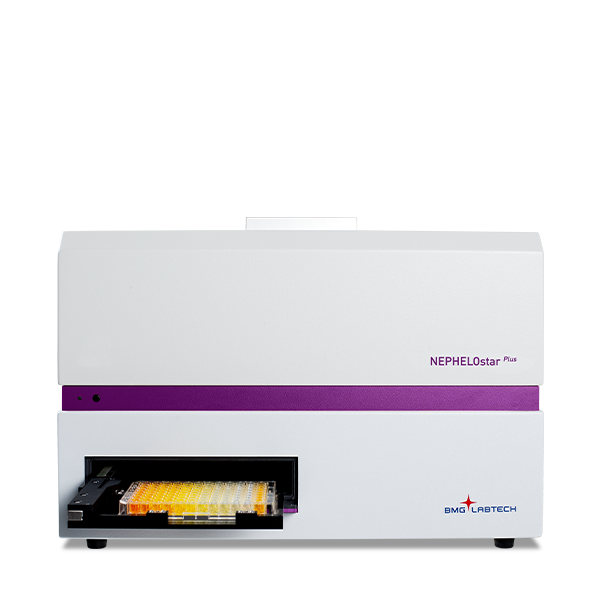

NEPHELOstar Plus
光散射和浊度检测的激光微孔板分析仪
NEPHELOstar® Plus 是全球首款基于激光技术的微孔板浊度分析仪，专为高通量复合物溶解度筛选而设计。
该系统通过检测前向散射光信号，定量分析液体样品中的不溶性颗粒，可用于浊度测量及多种相关应用，包括药物溶解度筛选、蛋白结合动力学研究、微生物生长监测以及工业过程控制（如石油加工）。
NEPHELOstar Plus
NEPHELOstar Plus 配备高强度激光二极管光源，是一款基于激光散射原理的微孔板浊度分析仪。与传统基于透射光密度（OD）的检测方法相比，该系统通过测量前向散射信号实现分析，灵敏度提升约 30 倍。
凭借高速检测性能、高灵敏度与良好的方法灵活性，NEPHELOstar Plus 可将激光散射浊度分析拓展至更广泛的微孔板应用场景。
NEPHELOstar Plus 仅用于科研用途。
特点
- 可调激光强度和光束直径
- 测量多达384孔微孔板
- 孵育温度高达45°C
- 线性，轨道和双轨道振荡
- 高精度注射器，同时进行试剂注入和检测
- 兼容堆叠系统及机械臂自动化平台
服务于全球科研与工业机构：
可选配件
- Atmospheric Control Unit: O₂ 和 CO₂ 气体调节模块
- THERMOstar: 微孔板培养箱和轨道式振荡器
- Microplate Stacker: マイクロプレート処理システム
酶标仪技术
-
NEPHELOstar Plus 的维护要求有哪些？
BMG LABTECH 微孔板读数仪具有高度的稳固性和可靠性，无需对光学组件进行校准。建议的维护包括调整板载托架偏移、清洁光学组件、软件/固件更新以及常规性能检查。 -
维护费用和服务方案有哪些？
BMG LABTECH 提供灵活的维护方案，以确保长期性能。费用取决于所选择的方案。请通过服务合同表格与我们联系。 -
BMG LABTECH 是否提供 NEPHELOstar Plus 的技术支持或培训？
是的，我们提供全面的技术支持和培训服务，帮助用户充分发挥仪器性能。欢迎联系我们了解更多信息。 -
在哪里可以找到 NEPHELOstar Plus 的更多信息或购买选项？
您可以在 NEPHELOstar Plus 产品页面可以找到详细的产品信息、规格及可选配置。如需购买选项、报价或个性化推荐，请直接提交销售请求。 -
在哪里可以找到 NEPHELOstar Plus 的使用手册？
每台仪器都会附带说明书。如果您遗失了手册，可通过我们的手册请求表重新获取。 -
在哪里可以找到 NEPHELOstar Plus 的软件？
软件随每台仪器提供，可安装在任意数量的电脑上。您可以在随手册附赠的 USB（或旧型号的光盘）中找到。如果遗失，我们可提供下载链接。请联系软件支持。 -
NEPHELOstar Plus 的软件是否兼容 Windows 11？
兼容。从 V3.00 R3 版本起，NEPHELOstar Plus 软件完全支持 Windows 11。如需确保在 Windows 11 上正常运行或需要安装帮助，请联系软件支持。 -
NEPHELOstar Plus 的购置成本是多少？
费用取决于所选配置。请联系我们获取个性化报价。 -
是否有优化微孔板检测方法的教程？
有的，我们提供详细的 How-To Notes，解释常见检测参数、其影响，以及优化测量的技巧。可在我们的 How-To Notes 页面找到。 -
典型的交货时间是多久？
交货时间取决于型号库存、配置和您的所在位置。若需准确交期，请通过联系页面提交请求。 -
What is Lorem Ipsum?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Improving throughput for assessing nephelometric turbidity units (NTUs) using the NEPHELOstar® Plus
Nephelometric turbidity units (NTUs) refer to the concentration of particles to describe the quality of water. Read how the NEPHELOstar® Plus microplate nephelometer determines NTUs in low sample volume.
Nephelometric monitoring growth of Candida albicans using BMG LABTECH's NEPHELOstar Plus
Laser nephelometry was used for the rapid determination of the solubility of potential antimycotic drug compounds and for the measurement of fungal growth in the microplate format.
Measuring of rheumatoid factors by the NEPHELOstar Plus microplate reader
An alternative method to test Rheumatoid Factors by microplate nephelometry provides an inexpensive assay that can be used in medium- to high-throughput labs. Read more here!
Monitoring of microbial growth curves by laser nephelometry
Laser nephelometry is a reliable and sensitive technique to monitor microbial growth. Check out its good correlation with absorbance turbidity measurements in this AppNote!
A fully automated kinetic solubility screen in 384-well plate format using nephelometry
Tired of performing solubility tests for your compound libraries? Nephelometry offers a rapid, reliable and low-cost method for kinetic solubility screenings in high-throughput!
Detection modes compare
Nephelometry (light scattering)
Measurement modes
Endpoint and kinetic
Microplate formats
Up to 384-well plates
Microplate carrier
Robot compatible
Light sources
Self-monitoring laser diode
Wavelength 635±10 nm
Stability <0.2% deviation
Lifetime 20,000 hours
Output: 1 mW
Selectable beam width: 1.5 to 3.5 mm
Selectable intensity 0-100%
Scattering angle: detects up to 80° full cone angle
detectors
Side window photodiode detector
Wavelength selection
Photodiode
Wavelength 635±10 nm
sensitivity
Depending on particle size and liquid properties
Silica detection (particle size 0.5 to 10 µm) 800 nM
Dynamic Range: 5 decades
Maximum count rate (2,000,000 Relative Nephelometry Units (RNUs) per second)
Read times
Depend on assay conditions and liquid surface stability
Shortest times possible: 16 s (96), 47 s (384)
shaking
Linear, orbital, and double-orbital with user-definable time and speed
Purge gas vent
System to inject an atmosphere or to pull a vacuum into the reader
incubation
+4 °C above ambient up to 45 °C
The upper heating plate of the incubation chamber operates at 0.5 °C more than the lower plate. This prevents condensation build-up on the lid or sealer
software
Multi-user Reader Control and MARS Data Analysis Software included
FDA 21 CFR Part 11 compliant
dimensions
Width: 44 cm, depth: 48 cm, height: 32 cm; weight: 25 kg
Reagent injection
Up to 2 built-in reagent injectors
Injection at measurement position (6 to 384-well)
Individual injection volumes for each well (3 to 500 µL)
Variable injection speed up to 420 µL/s
Up to four injection events per well
Reagent back flushing
Power Requirements
- Input Voltage: 100-240 V, 50/60 Hz, max peak 300 VA
Power Consumption
- Instrument off: 0 W
- Normal operating conditions: 15 W
- Normal operating conditions, incubation set to 37°C: 50 W
Optional Accessories
thermostar
Microplate incubator and shaker
Atmospheric control unit acu
Actively regulates O2 and CO2 0.1-20%
stacker
Magazines for up to 50 plates - continuous loading feature
upgrades
Please contact your local representative for upgrades including options such as detection modes, reagent injectors, etc
misc
The NEPHELOstar Plus is for research use only.
