THERMOstar
微孔板培养箱和轨道式振荡器

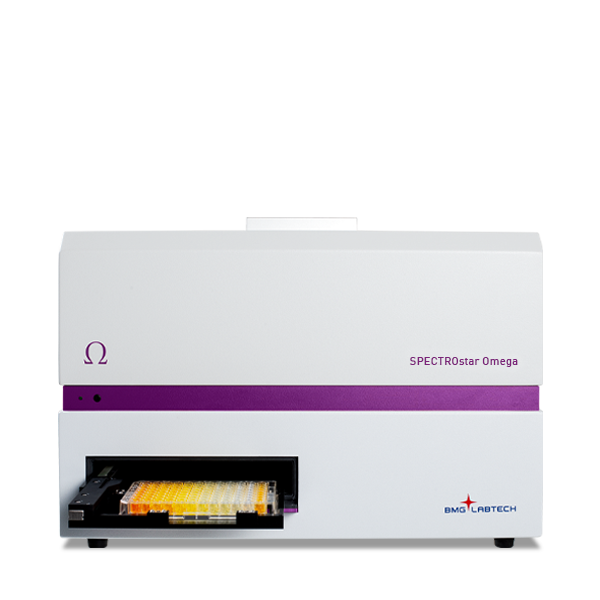

SPECTROstar Omega
超速紫外/可见分光光度计的吸光度酶标仪
SPECTROstar® Omega 是一款专用于吸光度检测的微孔板读板仪，支持 220–1000 nm 全波长光谱采集，可在 1 秒/孔以内完成测量，无需逐点扫描。该系统具备良好的可扩展性，可根据需求升级为多功能检测平台，为各类基于吸光度的分析提供高度灵活的解决方案。
设备兼容 LVis Plate，支持低体积样品检测，进一步拓展实验应用范围。
SPECTROstar Omega
SPECTROstar Omega 是一款专用于吸光度检测的微孔板读板仪，支持全波长光谱采集或最多 8 个非连续波长的同步测量。通过模块化升级，该系统可扩展为功能强大的多功能读板仪，支持多达 7 种检测模式，包括同步双发射检测及自动注射功能。
SPECTROstar Omega 仅用于科研用途。
特点
- 高速吸光度测定
- 兼容多种型号微孔板，最高支持1536孔板
- 精准控温，最高可达45℃或者65℃
- 多种振荡模式
- 每孔可扫描高达900个数据点
- 高精度注射系统，实现试剂注入和检测同步
- 支持低体积样品测定
服务于全球科研与工业机构：
可选配件
酶标仪技术
-
SPECTROstar Omega 的维护要求有哪些？
BMG LABTECH 微孔板读数仪设计坚固、可靠，无需对光学组件进行校准。建议的维护包括载板偏移调整、光学组件清洁、软件/固件更新以及例行性能检查。 -
维护成本和维护计划是怎样的？
BMG LABTECH 提供灵活的维护方案，以确保长期性能。费用取决于所选择的方案。请通过服务合同表格与我们联系。 -
BMG LABTECH 是否为 SPECTROstar Omega 提供技术支持或培训？
是的，我们提供全面的技术支持和培训服务，帮助用户充分发挥仪器的功能。请联系我们了解更多信息。 -
在哪里可以找到 SPECTROstar Omega 的更多信息或购买选项？
您可在 SPECTROstar Omega 产品页面查阅详细介绍、技术规格及可选配置。如需了解采购方案、获取报价或定制化建议，欢迎直接提交销售咨询申请。请向我们的销售团队提交请求。 -
在哪里可以找到 SPECTROstar Omega 的使用手册？
每台仪器都附带使用手册。如您遗失了手册，请使用我们的手册申请表获取副本。 -
在哪里可以找到 SPECTROstar Omega 的软件？
软件随每台读数仪一并提供，可安装在任意数量的计算机上。软件位于随手册附带的 USB 盘中（旧型号为 CD）。如果您遗失了 USB 盘或 CD，我们可以提供下载链接。请联系软件支持团队。 -
SPECTROstar Omega 的 BMG LABTECH 软件是否兼容 Windows 11？
-
SPECTROstar Omega 的采购成本是多少？
成本因所选配置而异。请联系我们以获取个性化报价。 -
是否提供有关优化微孔板读数仪测量的教程？
是的，我们提供专属 How-To Notes（操作指南），详细解读检测参数设置及性能优化技巧，助力您高效使用仪器。您可以在 How-To Notes 页面找到这些资源。 -
典型的交付时间是多久？
交付时间取决于型号供应情况、配置以及您所在的地区。如需准确的交付周期，请直接通过联系页面提交一般咨询。
Loading reviews...
Colorimetric and turbidimetric analysis of endotoxins using the absorbance detection mode
Torn between a colorimetric or turbidimetric LAL assay? Whichever path you take, BMG LABTECH’s absorbance readers deliver dependable results every time.
Multiplexing the production of two G protein-coupled receptor second messengers using spectrally resolved fluorescent dyes
Streamline your workflow and double your insights: multiplexing cellular signal responses of multiple second messengers in a single measurement saves valuable time and conserves reagents.
Detection of bacterial endotoxins using the PYROSTAR™ ES-F/Plate LAL assay
Perform the PYROSTAR ES-F/Plate LAL test your way— BMG LABTECH readers support both turbidimetric and nephelometric evaluation for maximum flexibility.
Fast and highly sensitive pyrogen detection with the LumiMAT™ assay performed on BMG LABTECH microplate readers
Are you a fan of the monocyte activation test for endotoxin tests, but would like to speed up the testing process? Read here how the LumiMAT test and BMG LABTECH readers can support you.
Determination of Minimum Inhibitory Concentration (MIC) of antibiotics using OD600
Do you want to make your MIC measurements more efficient and automated? Find out here how BMG LABTECH microplate readers can support you in this task.
Screening for novel antibiotics in venom against Staphylococcus aureus
The threat of growing antibiotic resistance is constantly increasing. Find out here how venom fractions are emerging as a beacon of hope in the search for novel antibiotics.
Detection modes
UV/vis absorbance spectra
Measurement modes
Endpoint and kinetic
Spectral scanning (absorbance)
Well scanning
Microplate formats
6 to 1536-well plates, user-definable
LVis Plate with 16 low volume microspots (2 μL)
Microplate carrier
Robot compatible
Light sources
High energy xenon flash lamp
Detectors
CCD Spectrometer
Wavelength selection
UV/Vis Absorbance Spectrometer
Full spectra or 8 distinct wavelengths in < 1 sec/well
Spectral range
Spectrometer
220 - 1000 nm; wavelength precision: ≤ 0.5 nm
Sensitivity
Selectable spectral resolution: 1, 2, 5, and 10 nm
OD range: 0 to 4 OD; photometric resolution: 0.001 OD
Accuracy: < 1% at 2 OD
Precision: < 0.5% at 1 OD and < 0.8% at 2 OD
Linearity: ≤ 0.8% at 2.0 OD
Read times
Full spectrum from 220 to 1000 nm in less than 1 sec/well
Shaking
Linear, orbital, and double-orbital with user-definable time and speed
Purge gas vent
System to inject an atmosphere or to pull a vacuum into the reader
Incubation
+4 °C above ambient up to 45 °C or 65 °C
The upper heating plate of the incubation chamber operates at 0.5 °C more than the lower plate. This prevents condensation build-up on the lid or sealer
Software
Multi-user Reader Control and MARS Data Analysis Software included
FDA 21 CFR Part 11 compliant
Dimensions
Width: 44 cm, depth: 48 cm, height: 30 cm; weight: 28 kg
Reagent injection
Up to 2 built-in reagent injectors
Injection at measurement position (6 to 384-well)
Individual injection volumes for each well (3 to 500 µL)
Variable injection speed up to 420 µL/s
Up to four injection events per well
Reagent back flushing
Power requirements
- 100-240 V, 50/60 Hz, max. peak 300 VA
Power consumption
- Instrument off: 0 W
- Normal operating conditions: 25 W
- Normal operating conditions, incubation set to 37oC: 60 W
Optional Accessories
LVis plate
Sample capacity: sixteen separate microdrop wells for 2 µL samples; one standard cuvette position for up to 1 mL samples
Quality control internal standards (optional): four NIST-traceable optical density filters (approximate values of 0.1, 0.3, 0.6 and 1.0 OD); one holmium oxide filter for wavelength accuracy
Dimensions: conforms to SBS standards for microplates
THERMOstar
Microplate incubator and shaker
Atmospheric control unit
Actively regulates O2 and CO2 0.1-20%
Stacker
Magazines for up to 50 plates - continuous loading feature
Upgrades
Please contact your local representative for upgrades including options such as detection modes, reagent injectors, etc
*
The SPECTROstar Omega is for research use only.
