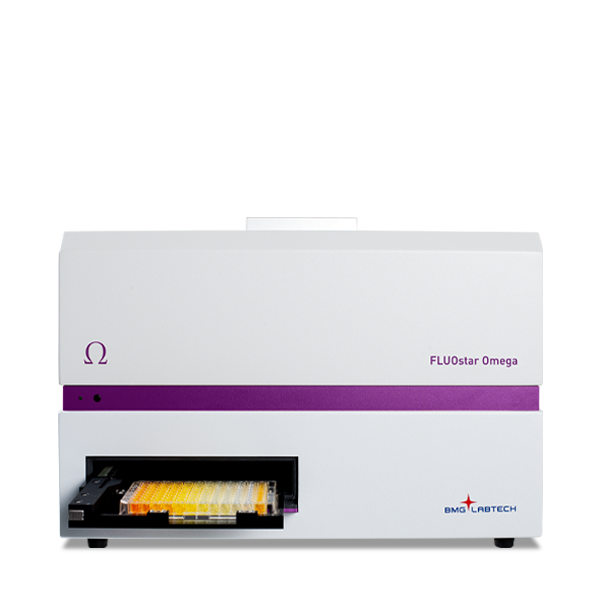

FLUOstar Omega
滤光片型多功能酶标仪
FLUOstar® Omega是一种具有三种检测模式的多模式微孔板读板机。它采用超高速紫外/可见光谱或滤光片，以及所有其他检测模式的高灵敏度滤光片。 FLUOstar Omega是生命科学应用领域的理想酶标仪。
评分
One of the best devices in my lab
We got our Fluostar Omega in 2010. It has been in frequent regular use since then and was...
4.7/5.0 (53)
FLUOstar Omega
FLUOstar Omega是一款多功能多模式酶标仪，具有六种检测模式:荧光强度（包括FRET），发光（包括BRET），紫外/可见吸收光谱，时间分辨荧光-包括。
FLUOstar Omega 仅用于科研用途。
特点
- 高速吸光度测定
- 检测高达384孔板
- 顶部和底部测读
- 最高45℃或者65℃的控温功能
- 用户定义的振荡
- 每孔的扫描量高达900个数据点
- 高精度注射器，同时进行试剂注入和检测
- 低体积测定
深受信任和喜爱：
可选配件
- Atmospheric Control Unit: O₂ 和 CO₂ 气体调节模块
- THERMOstar: 微孔板培养箱和轨道式振荡器
- Microplate Stacker: マイクロプレート処理システム
- LVis Plate: 用于低体积测量和性能测试的微孔板
- Filters: 适用于多种应用的滤光片
- Evaluation Plate: 用于光学功能验证的微孔板
客户成功案例
我们的技术
Multiplexing the production of two G protein-coupled receptor second messengers using spectrally resolved fluorescent dyes
Streamline your workflow and double your insights: multiplexing cellular signal responses of multiple second messengers in a single measurement saves valuable time and conserves reagents.
Detection of bacterial endotoxins using the PYROSTAR™ ES-F/Plate LAL assay
Perform the PYROSTAR ES-F/Plate LAL test your way— BMG LABTECH readers support both turbidimetric and nephelometric evaluation for maximum flexibility.
Fast and highly sensitive pyrogen detection with the LumiMAT™ assay performed on BMG LABTECH microplate readers
Are you a fan of the monocyte activation test for endotoxin tests, but would like to speed up the testing process? Read here how the LumiMAT test and BMG LABTECH readers can support you.
Determination of Minimum Inhibitory Concentration (MIC) of antibiotics using OD600
Do you want to make your MIC measurements more efficient and automated? Find out here how BMG LABTECH microplate readers can support you in this task.
Screening for novel antibiotics in venom against Staphylococcus aureus
The threat of growing antibiotic resistance is constantly increasing. Find out here how venom fractions are emerging as a beacon of hope in the search for novel antibiotics.
Detection Modes
Fluorescence intensity - incl. FRET
Luminescence (flash and glow) - incl. BRET
UV/Vis absorbance spectra
Measurement Modes
Top and bottom reading
Endpoint and kinetic
Sequential multi excitation
Sequential multi emission
Simultaneous Dual Emission (FI and LUM)
Spectral scanning (absorbance)
Ratiometric measurements
Microplate Formats
6 to 384-well plates, user-definable
LVis Plate with 16 low volume microspots (2 μL)
Microplate Carrier
Robot compatible
Light Sources
High energy xenon flash lamp
Detectors
Low noise photomultiplier tube
CCD spectrometer
Wavelength Selection
Optical filters: ex and em wheels for 8 filters each
UV/vis absorbance spectrometer: full spectra or 8 distinct wavelengths in < 1 sec/well
Spectral Range
Filters
240 - 740 nm or 240 - 900 nm for FI
240 - 740 nm for LUM
Spectrometer
220 - 1000 nm for ABS; wavelength precision: ≤ 0.5 nm
Sensitivity
FI
<0.2 fmol/well FITC.
TRF
< 30 amol/well europium.
LUM
< 20 amol/well ATP.
ABS with spectrometer
Selectable spectral resolution: 1, 2, 5, and 10 nm.
OD range: 0 to 4 OD; photometric resolution: 0.001 OD.
Accuracy: < 1% at 2 OD.
Precision: < 0.5% at 1 OD and < 0.8% at 2 OD.
Linearity: ≤ 0.8% at 2.0 OD.
ABS with filters
OD range: 0 to 4 OD
Reproducibility: ±0.010 OD for 0-2 OD range
Read Times
Flying mode (1 flash)
9 s (96), 16 s (384)
Shaking
Linear, orbital, and double-orbital with user-definable time and speed
Purge Gas Vent
System to inject an atmosphere or to pull a vacuum into the reader
Incubation
+4 °C above ambient up to 45 °C or 65 °C
The upper heating plate of the incubation chamber operates at 0.5 °C more than the lower plate. This prevents condensation build-up on the lid or sealer
Software
Multi-user Reader Control and MARS Data Analysis Software included
FDA 21 CFR Part 11 compliant
Dimensions
Width: 44 cm, depth: 48 cm, height: 30 cm; weight: 28 kg
Optical Filters
Excitation and emission filter wheels for 8 filters each
Optical Path Guides
Top: liquid-filled light guides
Bottom: fiber optics
Reagent Injection
Up to 2 built-in reagent injectors
Injection at measurement position (6 to 384-well)
Individual injection volumes for each well (3 to 500 µL)
Variable injection speed up to 420 µL/s
Up to four injection events per well
Reagent back flushing
Power Requirements
- 100-240 V, 50/60 Hz, max. peak 300 VA
Power Consumption
- Instrument off: 0 W
- Normal operating conditions: 25 W
- Normal operating conditions, incubation set to 37°C: 60 W
Optional Accessories
LVis Plate
Sample capacity: sixteen separate microdrop wells for 2 µL samples; one standard cuvette position for up to 1 mL samples
Quality control internal standards (optional): four NIST traceable optical density filters (approximate values of 0.1, 0.3, 0.6 and 1.0 OD); one holmium oxide filter for wavelength accuracy
Dimensions: conforms to SBS standards for microplates
THERMOstar
Microplate incubator and shaker
Atmospheric Control Unit (ACU)
Actively regulates O2 and CO2 - 0.1-20%
Stacker
Magazines for up to 50 plates - continuous loading feature
Optical Filters
Excitation and emission filters
Upgrades
Please contact your local representative for upgrades including options such as detection modes, reagent injectors, etc
*
LOD = 3 x SD (20 blanks) / slope (6 pt std curve)
Microplates: white for LUM; black for FI; clear for ABS
96 = 96-well microplates
384sv = 384-well small volume microplates
384g = 384-well glass bottom microplates
The FLUOstar Omega is for research use only.
