SPECTROstar Nano
多功能全波长酶标仪（内置比色皿检测端口）
-
BMG LABTECH 推出的创新型吸光度微孔板读板仪，兼具卓越灵活性，可在微孔板模式与内置比色皿接口之间快速切换，实现对不同类型样品的高效检测。
-
该设备基于光谱扫描技术，能够在 1 秒/孔以内获取完整的紫外-可见吸收光谱，实现快速、精准的吸光度测量。
-
凭借高速检测性能、直观的操作界面以及单次测定方案的便捷存储功能，SPECTROstar® Nano 为吸光度分析提供了高效、可靠的解决方案，是实验室常规检测与高通量分析的理想选择。

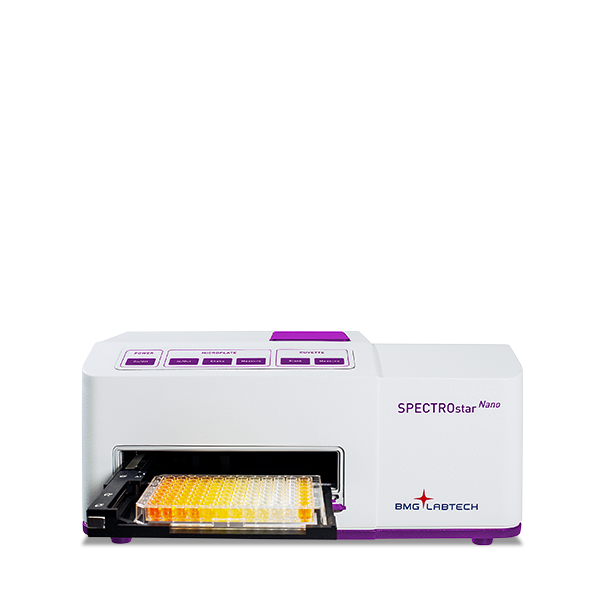

SPECTROstar Nano
SPECTROstar Nano 搭载 BMG LABTECH 超高速 UV/Vis 光谱检测系统，可在 1 秒/孔以内完成 220–1000 nm 范围内的全波长吸光度测量，实现快速、全面的光谱数据采集。
该系统兼容微孔板与比色皿检测模式，可对不同类型样品进行灵活分析，是吸光度测量的高效解决方案。通过预设方法库，用户可一键调用多种常用检测方案，显著提升实验效率与操作便捷性。
本产品仅限科研使用。
产品特点
- 超高速全光谱吸光度测量
- 支持最高1536孔板检测
- 一体化比色皿端口
- 兼容LVis平板
- 孵育温度可达45°C
- 多种震荡模式
- 单孔可采集最高900个数据点
服务于全球科研与工业机构：
可选配件
- THERMOstar: 微孔板恒温孵育器及轨道振荡模块
- LVis Plate: 适用于微量体积检测与仪器性能校准的专用微孔板
- Evaluation Plate:用于光学系统功能验证与质控的校准微孔板
SPECTROstar Nano 产品视频
我们的技术
-
SPECTROstar Nano 的维护项目有哪些？
我们的仪器结构坚固稳定，可靠性高，无需进行常规光学校准。建议的定期维护项目包括：波长偏移校正、光学系统清洁、系统固件更新及性能验证检测。 -
维护费用和服务计划？
我们提供灵活可定制的仪器维护服务方案，可根据实验室使用场景、维保等级与服务需求自由选配。相关服务费用将依据所选方案类型与服务范围而定，支持个性化报价。 -
是否提供技术支持或培训？
是的，提供全面技术支持和培训。 -
如何获取更多产品信息及购买？
如需了解SPECTROstar Nano的完整参数、应用方案、配件选型及采购详情，可直接访问 BMG LABTECH 官方产品页面。 -
如何获取产品手册？
产品手册随设备随机附赠；如需补领或重新获取，可通过官方手册申请通道提交申领。 -
如何下载相关软件？
仪器配套的控制与数据分析软件，随设备以USB 闪存盘（旧款机型为CD 光盘）形式附赠。若存储介质遗失，可联系官方软件支持获取补发下载链接。 -
是否兼容 Windows 11 ？
自软件版本 V2.10 R7 起，已全面兼容 Windows 11 系统。 -
购买费用？
设备采购价格根据最终配置方案而定。 -
如何获取操作教程？
相关操作教程可在官方 HowTo Notes 专栏页面查阅。 -
交付周期为多长？
设备交付时间将根据库存状态、具体配置方案及交付地区有所差异。
Detection of bacterial endotoxins using the PYROSTAR™ ES-F/Plate LAL assay
Perform the PYROSTAR ES-F/Plate LAL test your way— BMG LABTECH readers support both turbidimetric and nephelometric evaluation for maximum flexibility.
Determination of Minimum Inhibitory Concentration (MIC) of antibiotics using OD600
Do you want to make your MIC measurements more efficient and automated? Find out here how BMG LABTECH microplate readers can support you in this task.
Testing novel bacteriophages for antibacterial properties with a crystal violet biofilm quantification assay
Antibiotic resistance in bacteria is a growing threat to human health. Read this App note to learn how bacteriophage efficacy can be evaluated on microplate readers.
DNA purity ratio – fast and easy absorbance-based evaluation of nucleic acid quality
Purity assessment of nucleic acids is essential for many downstream applications. Read here how absorbance readouts and pre-installed MARS templates get you there easily.
High-throughput ELISA ready to analyse in 90-minutes: 384-well SimpleStep ELISA® with the PHERAstar® FSX
Did you know, that the 90 min SimpleStep ELISA®s by abcam also work in 384-well format? Read here why our dedicated high-throughput reader PHERAstar® FSX is the perfect match for HTS.
Detection modes compare
UV/vis absorbance spectra
measurement_modes
Endpoint and kinetic
Spectral scanning (absorbance)
Well scanning
microplate_formats
6 to 1536-well plates, user-definable
LVis Plate with 16 low-volume microspots (2 μL)
microplate_carrier
Robot compatible
light_sources
High energy xenon flash lamp
detectors
CCD Spectrometer
wavelength_selection
UV/vis absorbance spectrometer
Full spectra or 8 distinct wavelengths in < 1 sec/well
spectral_range
220 - 1000 nm; wavelength precision: ≤ 0.5 nm
sensitivity
Selectable spectral resolution: 1, 2, 5, and 10 nm
OD range: 0 to 4 OD; photometric resolution: 0.001 OD
Accuracy: < 1% at 2 OD
Precision: < 0.5% at 1 OD and < 0.8% at 2 OD
Linearity: ≤ 0.8% at 2.0 OD
read_times
Full spectrum from 220 to 1000 nm in less than 1 sec/well
shaking
Linear, orbital, and double-orbital with user-definable time and speed
purge_gas_vent
System to inject an atmosphere or to pull a vacuum into the reader
incubation
+3 °C above ambient up to 45 °C
The upper heating plate of the incubation chamber operates at 0.5 °C more than the lower plate. This prevents condensation build-up on the lid or sealer
software
Multi-user Reader Control and MARS Data Analysis Software included
FDA 21 CFR Part 11 compliant
dimensions
Width: 36 cm, depth: 50 cm, height: 16 cm; weight: 10 kg
Power Requirements:
- External Power Supply
- Input Voltage: 100 or 115 or 230 V, 50/60 Hz, auto ranging
- Output Voltage: 24V DC / 2.5A
Power Consumption:
- Standby 0 W (<0,5W)
- Idle Mode 5 W
- Measuring 15 W
- Maximum 60 W
Optional Accessories
lvis_plate
Sample capacity: sixteen separate microdrop wells for 2 µL samples; one standard cuvette position for up to 1 mL samples
Quality control internal standards (optional): four NIST traceable optical density filters (approximate values of 0.1, 0.3, 0.6 and 1.0 OD); one holmium oxide filter for wavelength accuracy
Dimensions: conforms to SBS standards for microplates
thermostar
Microplate incubator and shaker
misc
The SPECTROstar Nano is for research use only.
